GE Aviation’s LEAP jet engines, expected to hit the market sometime next year, will include 3D printed fuel nozzles. This is a significant test for both GE and the additive manufacturing space, as the nozzle is incredibly important to the safety of those flying on board an aircraft powered by any such LEAP engine. GE also expects to have over 100,000 parts manufactured via 3D printers by 2020, making the technology a significant part of their manufacturing operations over the next 5 years. With all this said, yesterday marked a major milestone in the company’s drive to make additive manufacturing a key component to their production capabilities. Yesterday it was announced that the first of over 400 planned GE90 engines had been retrofitted with a 3D printed T25 sensor housing.
For those of you unaware, the GE90 engine is the world’s largest turbofan engine. It launched in 1990 and first entered service almost 20 years ago in November of 1995. It is used on the Boeing 777 aircraft, and is produced in several different variants, ranging from 76,000 pounds-force to 115,300 pounds-force.

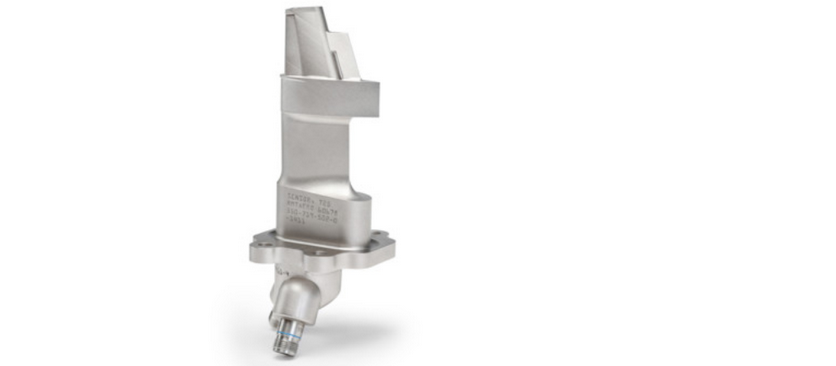

The new T25 sensor housing will be responsible for holding the T25 sensor in place within the 90-94B engine. The housing is manufactured on a machine which sinters a cobalt-chrome alloy powder, layer-by-layer, slowly building up an end-use part based off of directions provided by computer modeling software. Because of this new method of production, the sensor is shaped in a way which better protects its electronics from potentially damaging airflow and icing according to General Electric.
“Additive manufacturing has allowed GE engineers to quickly change the geometry through rapid prototyping and producing production parts, saving months of traditional cycle time for the T25 sensor housing without impacting the sensor’s capabilities,”explained Bill Millhaem, general manager of the GE90/GE9X engine program at GE Aviation.
The housing, which GE had quietly been granted certification for by the United States Federal Aviation Administration back in February of this year, is located in the inlet to the high pressure compressor within the engine. It’s a relatively important part, one which had to be heavily tested prior to the FAA approving it for in-flight use.
It will be interesting to see which other components they may turn to additive manufacturing for in the years ahead. Let’s hear your thoughts on GE’s very first operational 3D printed jet engine components. Discuss in the GE’s 3D Printed Jet Engine Sensor Housing forum thread on 3DPB.com.
